Mukesh Yadav

Biosignal Processing & Neuromorphic Hardware

Electronics & Communication Engineering undergraduate at JSSATEN, Noida. Developing physiological signal-processing pipelines, relative baseline methods for stress detection, and analog memristor circuit emulators.

Explore 3 Research Benchmarks Play Games (Arcade)Research Paper (PDF)

Mukesh Yadav - Biosignal Processing Researcher

Lead-II ECG Telemetry

Source: Recorded WESAD Lead-II

RR:786msHR:76BPM

Recorded WESAD Lead-II Telemetry (Subject S2, 700 Hz RespiBAN, 350 Hz playback • 25 mm/s Standard Clinical Window (6.0s))

01 // FLAGSHIP RESEARCH BENCHMARKS

Physiological Signals & Neuromorphic Hardware

Reproducible research systems spanning physiological signal processing, circuit emulation, numerical dynamical systems, authentic recorded waveforms, and open datasets.

FLAGSHIP BENCHMARK● Authentic WESAD DatasetLive Streamlit App ↗

Research Paper (PDF)

Reproducible Edge-to-Cloud ECG Stress Detection with Embedded Telemetry and Hardware-in-the-Loop Validation

10,000-Packet Physical HIL Validation • 4D Hyperchaotic Stream Cipher • 15-Fold LOSO Benchmark

Mitigated inter-subject baseline variability across 15 WESAD benchmark subjects using relative baseline calibration: X* = (X - Bs) / (|Bs| + ε). Validated with bare-metal STM32G474RE ARM Cortex-M4 edge DSP, continuous 4D hyperchaotic stream cipher (M-4DCHS), and a physical 10,000-packet zero-loss HIL testbed.

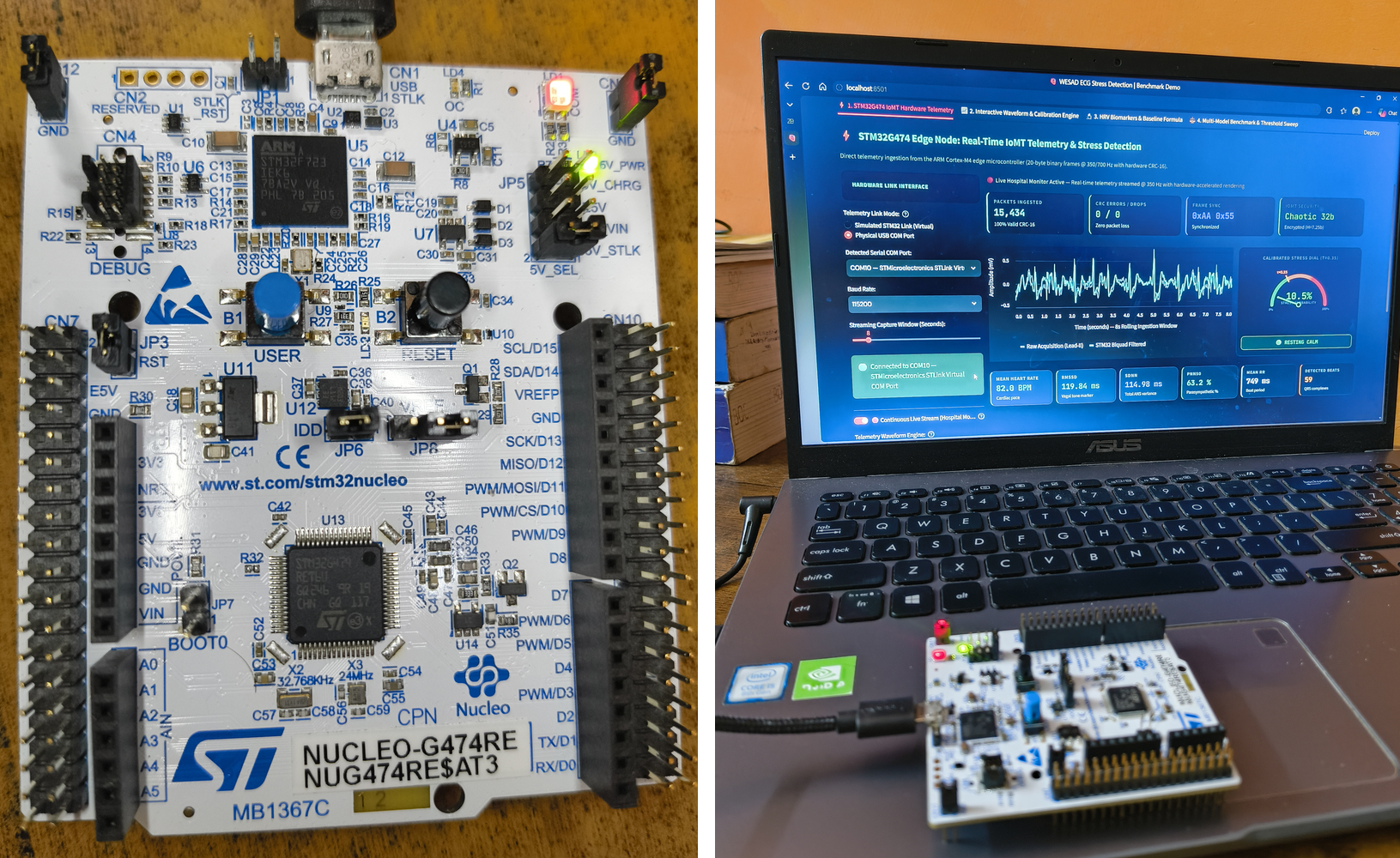

STM32G474RE Testbed

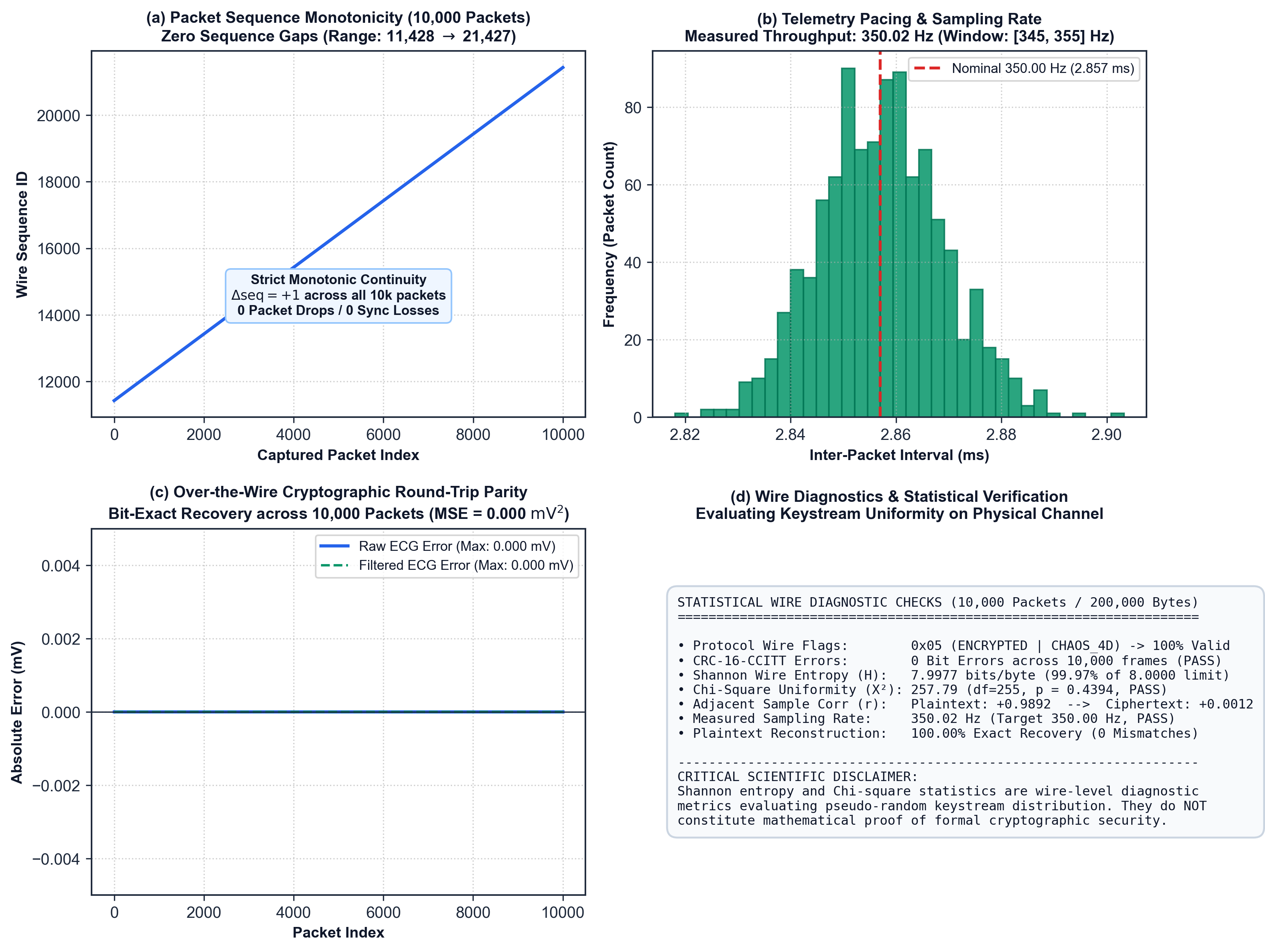

10k HIL Run (0% Loss)

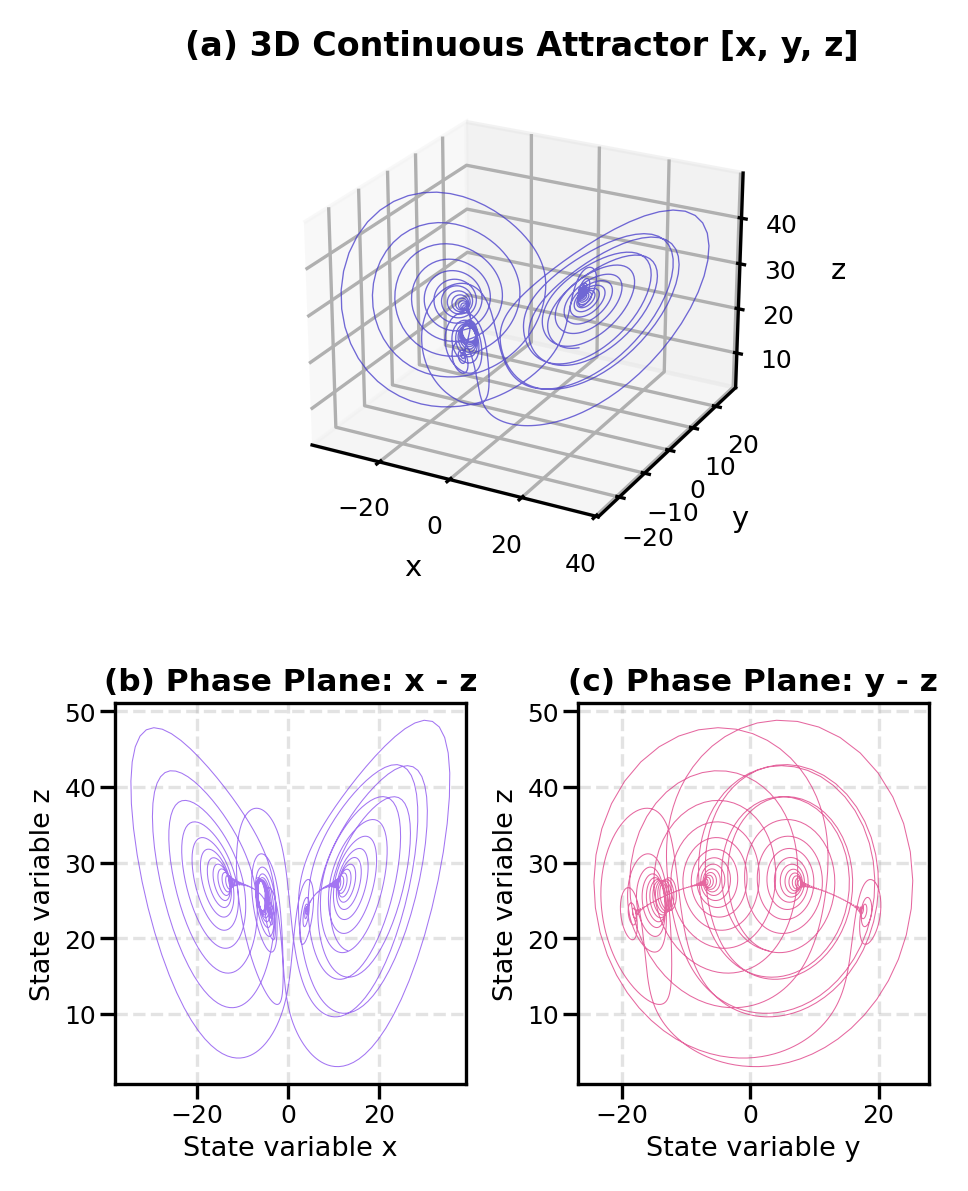

4D Hyperchaotic Attractor

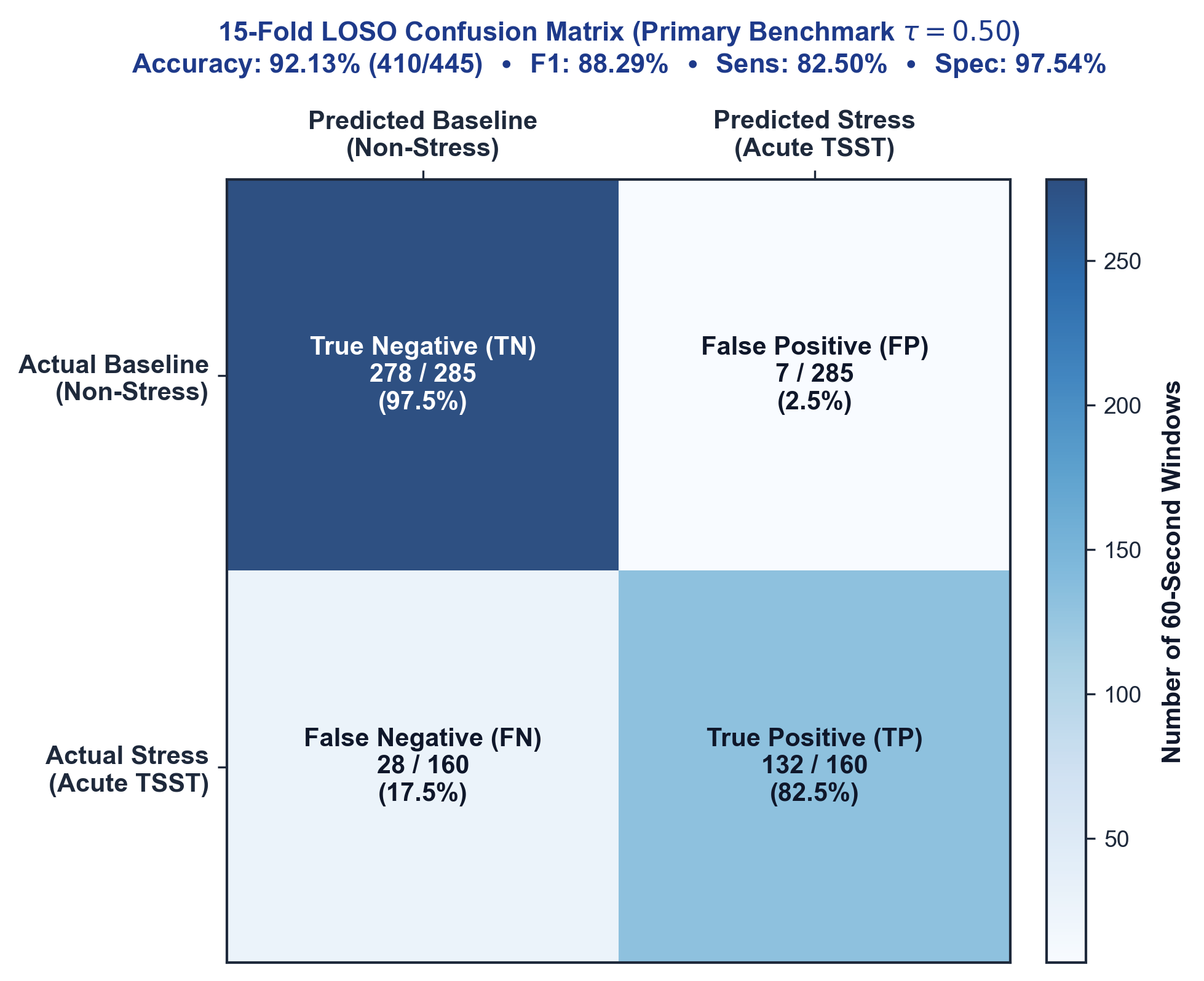

LOSO Matrix (7 False Alarms)

Primary Acc (τ=0.50)

92.13%

410 / 445 windows

Primary Specificity

97.54%

Only 7 false alarms

ROC-AUC / PR-AUC

0.9493

PR-AUC = 0.9467

Physical HIL Testbed

10,000 pkts

0% loss • 0 CRC err

*Validated on bare-metal ARM Cortex-M4 (STM32G474RE @ 170 MHz): 1.87 μs DSP latency (0.065% CPU), continuous 4D hyperchaotic stream cipher (λ₁ ≈ +0.438, λ₂ ≈ +0.254), and 10,000-packet zero-loss physical HIL validation.

LIVE ECG • LEAD-II

TSST:78 BPM

Click to expand Full ECG Workbench ↗

Live ECG Stress Telemetry

Stream authentic WESAD subjects S2, S3, and S17 with detected R-peak visualization.

Open Streamlit Cloud Studio ↗

HARDWARE REPRODUCTION STUDYBased on: IEEE TCAS-I (Lin et al., 2026)

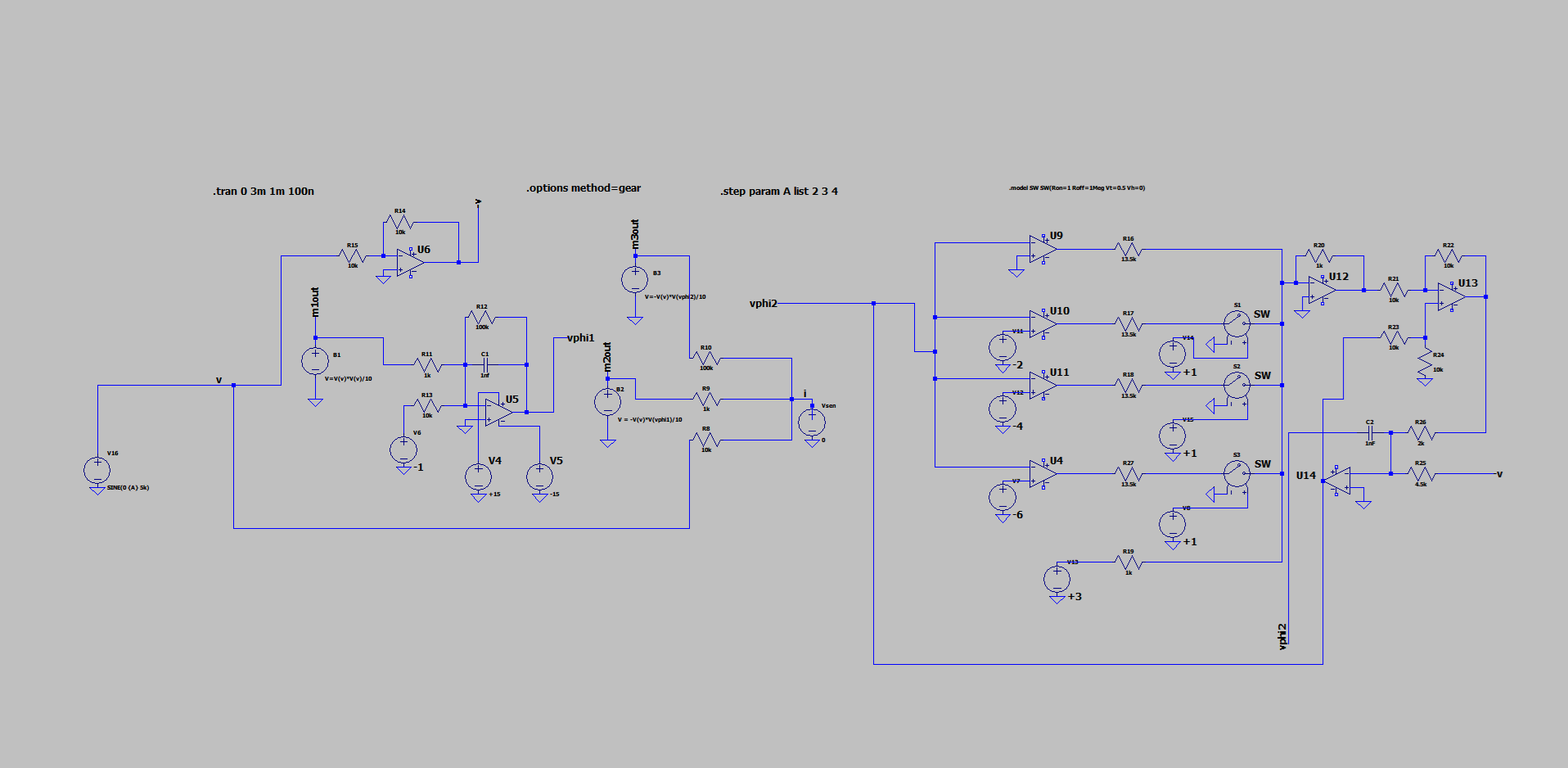

View Circuit Schematic

Second-Order Memristor Circuit Emulator & Hopfield Dynamics

Emulated a dual-state active memristor in LTspice using CFA/multiplier stages and verified frequency-dependent pinched hysteresis from 5–80 kHz; modeled a 5D memristive Hopfield network in MATLAB, reproducing a 4-butterfly chaotic attractor (M = 2).

Reference: Lin et al., "A Second-Order Memristor Method to Construct Memristive Neural Networks With Multi-Butterfly and Multi-Scroll Dynamics", IEEE Trans. Circuits Syst. I (2026)

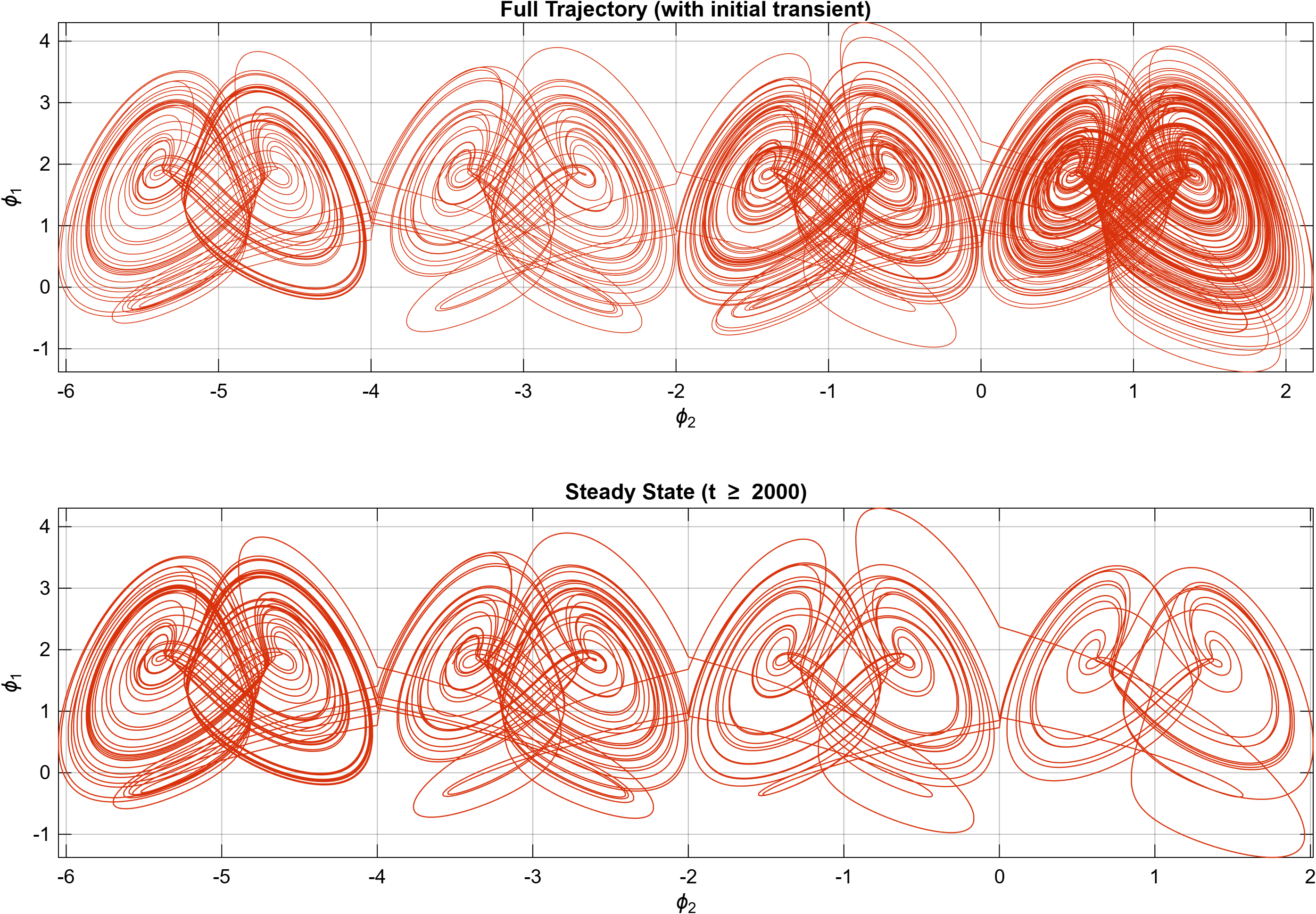

4-Butterfly Attractor

Circuit Emulation

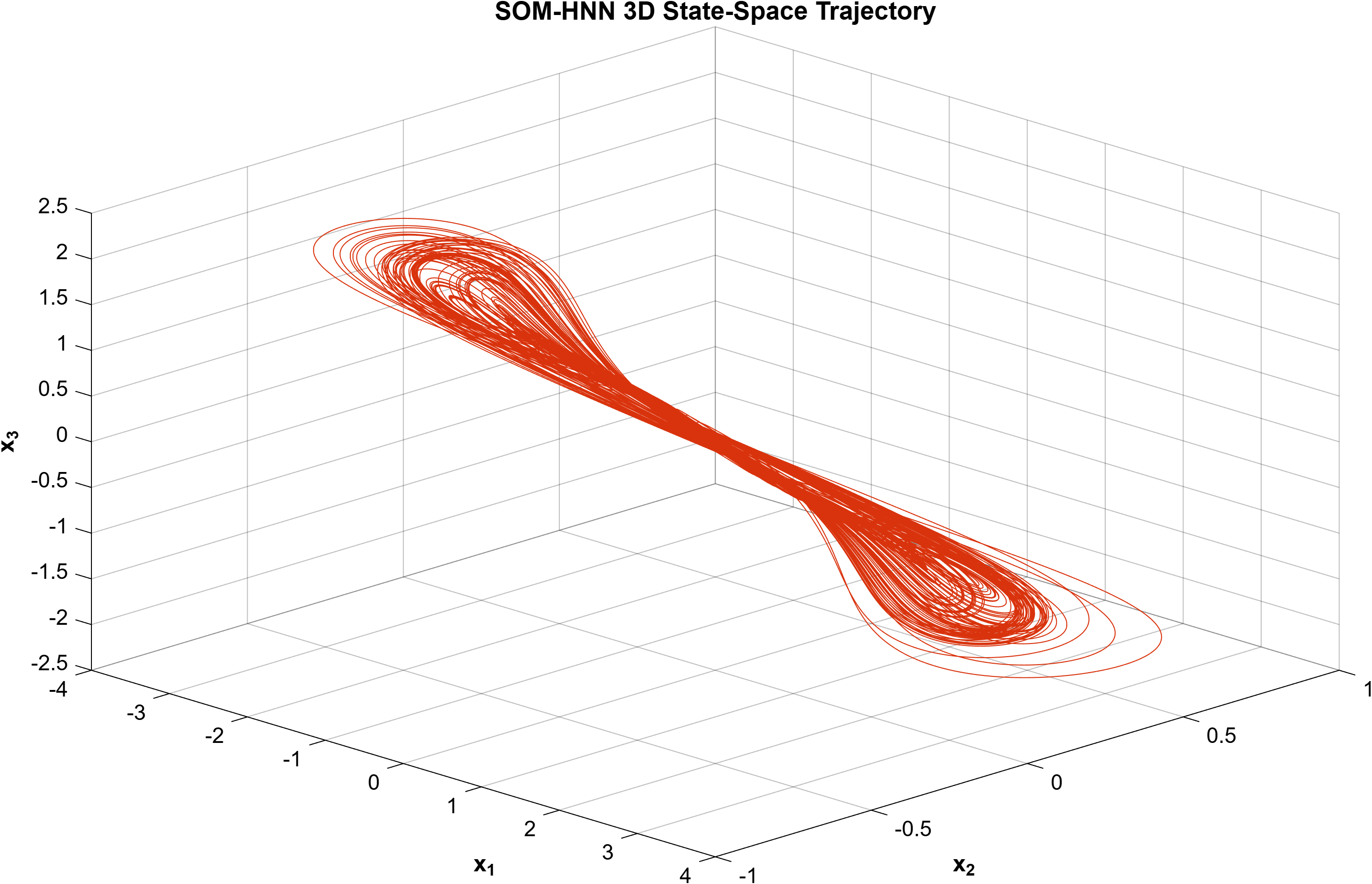

3D State Space

Frequency Sweep

5 – 80 kHz

Pinched hysteresis

Attractor Topology

4-Butterfly

Multi-scroll chaos

Analog Parts

AD844 + AD633

Current feedback

LIVE RK4

Active:Wing 2

Click to expand Full Workbench ↗

4-Butterfly Chaos Telemetry

Real-time 60 FPS numerical RK4 solver tracing the 4 chaotic wings and memductance dynamics live.

PHYSIONET MIT-BIH VALIDATEDRecord 100 Lead-MLII (2,274 Beats)● 12-bit Format 212 Decoded

View Filter Repository

ECG Signal Denoising: Comparative Study of FIR vs. IIR Filtering

Decoded raw 12-bit Format 212 binary telemetry directly in MATLAB. Modeled composite physiological noise (50 Hz powerline hum, 0.3 Hz baseline wander) to evaluate trade-offs between Butterworth IIR power efficiency vs. Equiripple FIR linear-phase morphology fidelity.

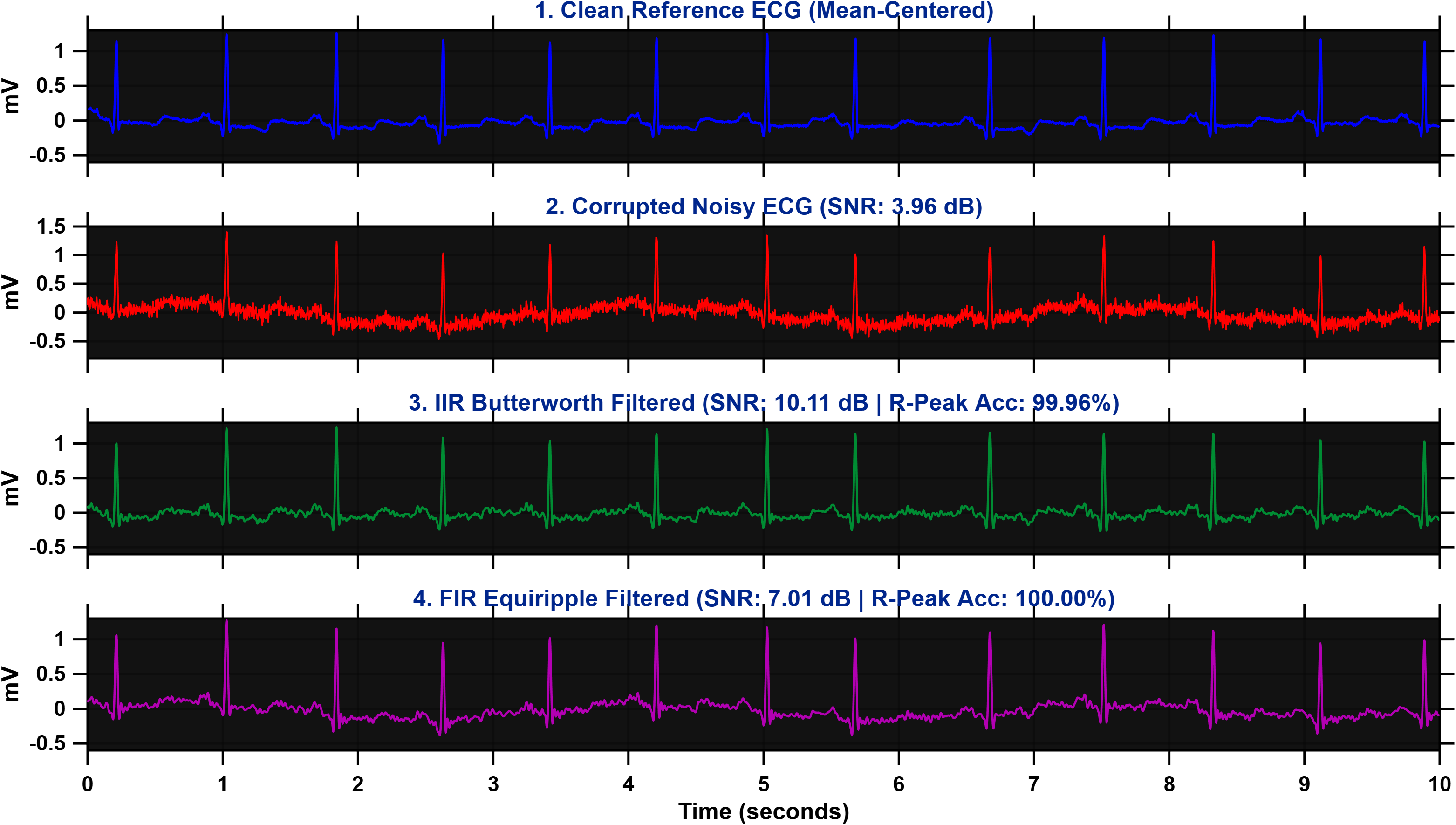

Waveform Denoising

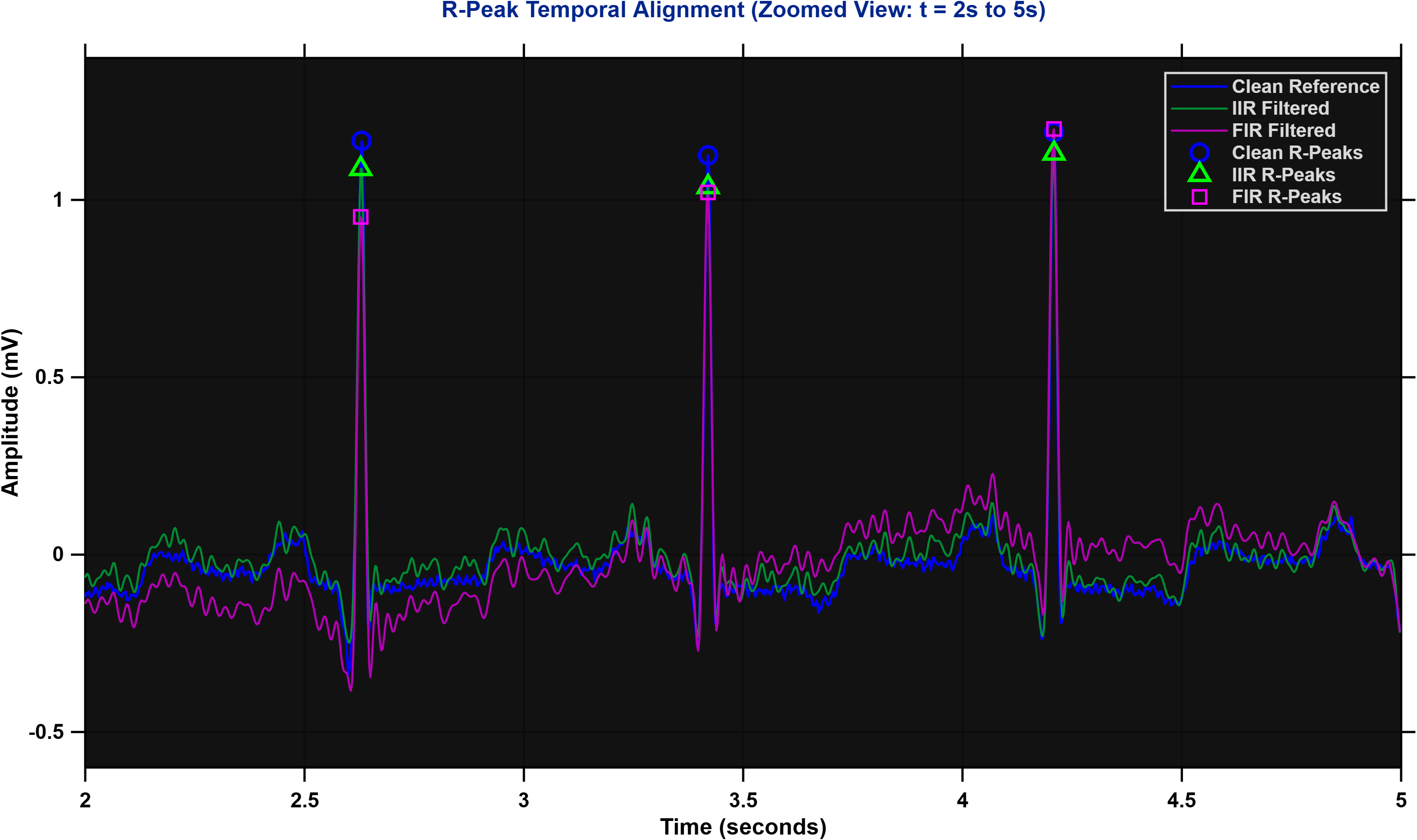

R-Peak Alignment

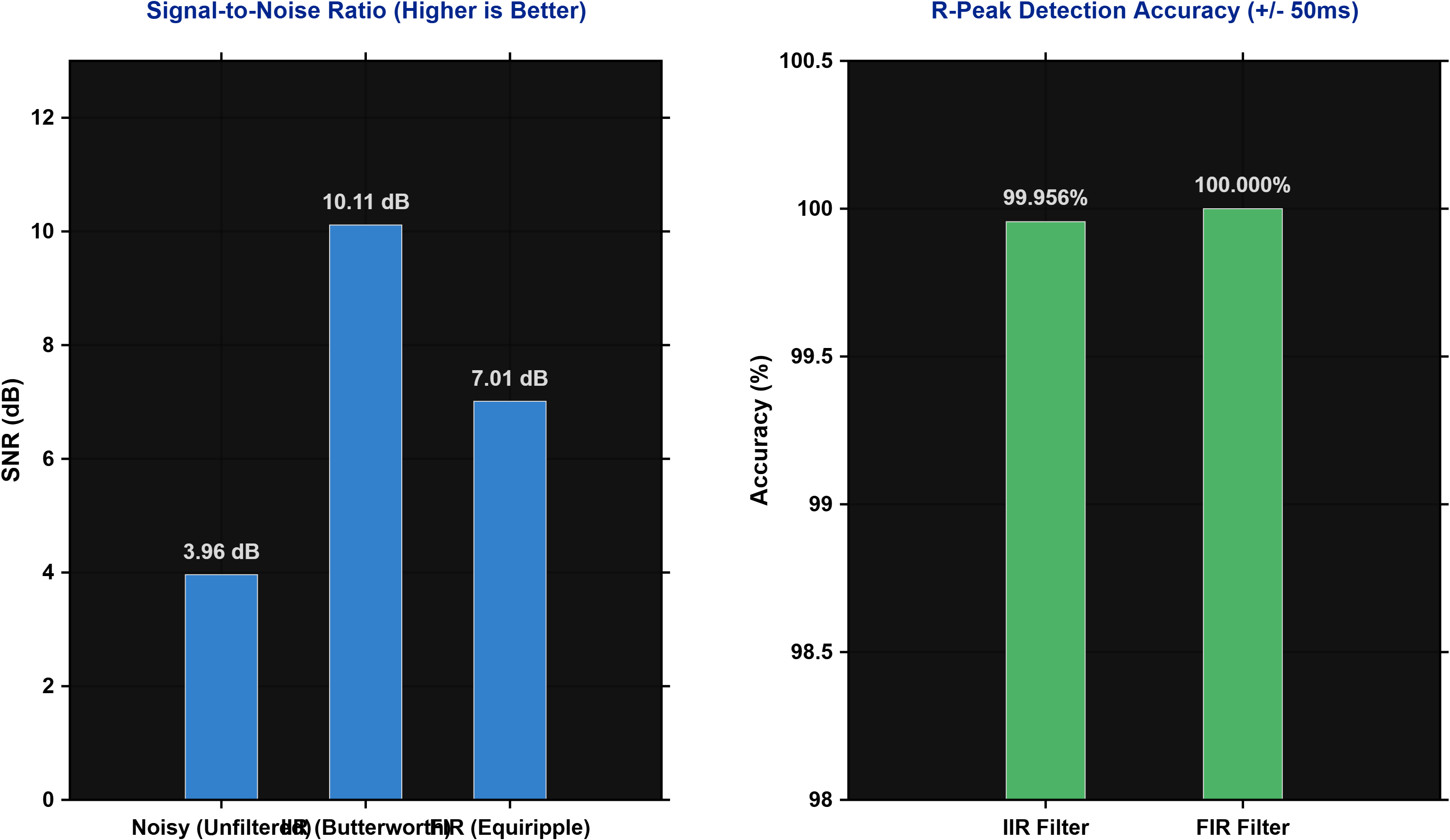

Performance Dashboard

SNR Improvement

+6.17 dB

IIR Butterworth

Morphology Alignment

100.00%

2,274 clinical beats

Efficiency Gain

12.5× Boost

8 vs 100 coefficients

LIVE DSP • MIT-BIH

IIR SNR:+6.17 dB

Raw (+50Hz)|IIR Clean

Click to expand Filter Workbench ↗

Real-Time Noise & Filter Telemetry

Dual-trace oscilloscope: Reddish raw (+50 Hz hum) vs. Purplish 4th-order IIR Butterworth clean output (+6.17 dB SNR).

02 // HARDWARE & DATA SYSTEMS

Embedded Sensors & Machine Learning Systems

Applied microcontroller signal conditioning and unsupervised machine learning clustering.

EMBEDDED C++ / HARDWARETimer Capture

Ultrasonic Distance & Time-of-Flight Telemetry

Arduino Microcontroller • HC-SR04 Transducer • Non-blocking Timer Interrupts

Obstacle Distance (d)45 cm

Min: 2 cmMax: 400 cm

Acoustic Echo Pulse (ToF)2624 μs

t = (2 × d) / v_soundv = 343 m/s @ 20°C

Sampling Loop

< 10 ms Latency

Resolution

±0.3 cm Accuracy

View Arduino Firmware on GitHub

UNSUPERVISED ML / ANALYTICS540k+ Transactions

Customer Lifetime Value & RFM Segmentation

UCI Online Retail II • K-Means Clustering • Prophet Revenue Forecasting

Cluster 01: Champions (High Value)58.4% of total revenue

Customer Volume: 14.2% of customer base

Frequency: Avg. 24 orders/yr

Recency: Avg. 8 days

Horizon: 12-Mo Prophet

Strategy: Reward with early access, VIP beta programs, and personalized concierge.

View Jupyter Notebook & Models on GitHub

03 // PLAYABLE ARCADE

Interactive In-Browser Games

Built from scratch with pure HTML5 Canvas, WebGL, responsive physics, and state management. Ready to play instantly.

PLAYABLE LIVE

60 FPS Engine

Click to Play In-Browser

Organic Farm Mart

Real-time Supermarket Simulation & Economy Game

Fast-paced farm-to-store supermarket management with real-time customer pathfinding, shelf stocking, and cash register dynamics.

SimulationEconomyHTML5 CanvasInteractive

PLAYABLE LIVE

60 FPS Engine

Click to Play In-Browser

Neon Escape

Fast-Paced Cyberpunk Canvas Survival Game

Dodging survival game featuring progressive hazard acceleration, boss encounters, energy orb collection, and dynamic procedural audio.

SurvivalBoss Battles60 FPS CanvasWeb Audio API

04 // FULL-STACK PLATFORMS

Live Deployed Web Applications

Production-ready web systems running globally on Vercel with responsive micro-architectures.

SMART INDIA HACKATHONLIVE ON VERCEL

SIH Employment & Skilling Platform

TypeScript • Next.js • Tailwind CSS • Vercel Edge

Employment and skilling intelligence dashboard developed for a Smart India Hackathon project, connecting training, employment, and outcome data through an interactive Next.js interface.

Architecture

Component Modular

Deployment

Vercel Production

Launch SIH Platform

MOBILE-FIRST REDESIGNLIVE ON VERCEL

ABTalks Media Platform Redesign

JavaScript • Modern CSS • Responsive UI • Vercel

Mobile-optimized redesign engineered for the ABTalks 60-day challenge, featuring fluid media player cards, touch gesture carousels, and minimal loading latency.

Focus

Mobile Performance

Lighthouse

High Performance

Launch ABTalks Redesign
